Cornell Dubilier Electronics (CDE)
1UF 350VAC 32X22X13MM LS=27.5

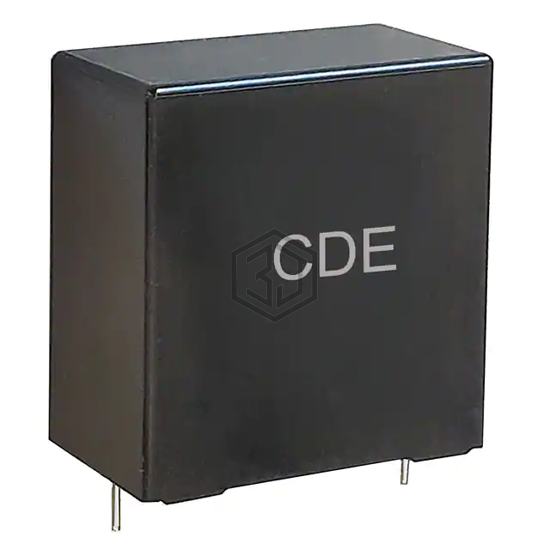

ALH105K351A032 is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). 1UF 350VAC 32X22X13MM LS=27.5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - ac 350V, package / case Radial.
In Stock: 8,973
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 350V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 10.9 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.260" L x 0.512" W (32.00mm x 13.00mm) |
| Height - Seated (Max) | 0.898" (22.80mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200 |
| Features | 85C/85% Humidity |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECW-FD2J105Q1 | Panasonic Electronic Components | CAP FILM 1UF 10% 630VDC RADIAL | 100% | View |
| ECW-FD2J105QC | Panasonic Electronic Components | CAP FILM 1UF 10% 630VDC RADIAL | 100% | View |
| F339X151033KKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 10% 800VDC RADIAL | 99% | View |
| B32026B3105M000 | EPCOS - TDK Electronics | CAP FILM 1UF 20% 300VAC RADIAL | 97% | View |
| 21227-06 | Iskra | KNB1560 1U 10% 275V L6 R27.5 CD | 96% | View |
| PPB1404100KHS | Nichicon | FILM CAP BOXED RADIAL | 94% | View |
