Cornell Dubilier Electronics (CDE)

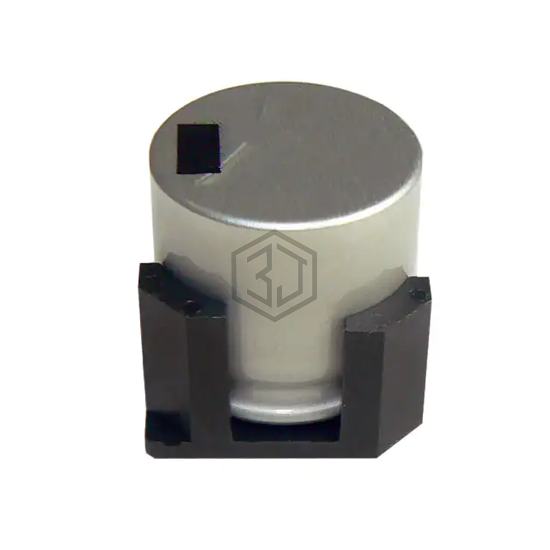

CAP ALUM 6800UF 20% 10V SMD
AFK688M10R44B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 6800UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 3,584
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 33mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 1.545 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.06 A @ 100 kHz |
| Impedance | 33 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.827" W (19.00mm x 21.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AFK688M10R44B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215099418E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V SMD | 93% | View |
| 10TLV6800M18X21.5 | Rubycon | CAP ALUM 6800UF 20% 10V SMD | 92% | View |
| EEV-FK0J682M | Panasonic Electronic Components | CAP ALUM 6800UF 20% 6.3V SMD | 82% | View |
| AFK688M06P44T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 6.3V SMD | 82% | View |
| EMVY6R3GDA682MMN0S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V SMD | 82% | View |
| EEE-FK0J682AV | Panasonic Electronic Components | CAP ALUM 6800UF 20% 6.3V SMD | 80% | View |
Submit your RFQ for AFK688M10R44B-F and get a quote within 24 hours.
