Cornell Dubilier Electronics (CDE)

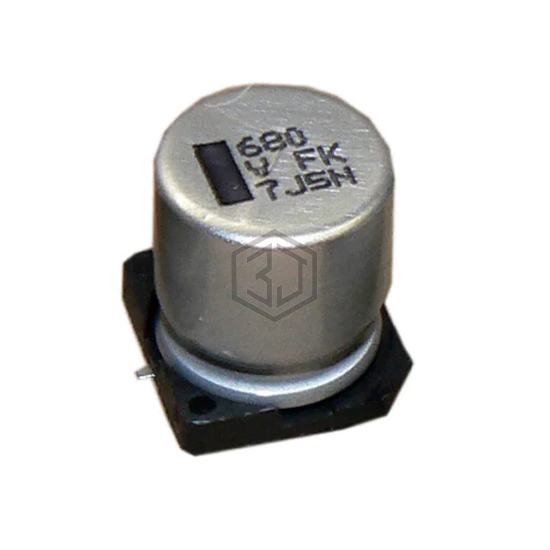

CAP ALUM 680UF 20% 16V SMD
AFK687M16G24B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 680UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 4,843
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 637.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.473" W (10.30mm x 12.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AFK687M16G24B-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1C681GL | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V SMD | 100% | View |
| MAL215099503E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V SMD | 95% | View |
| EEE-FN1E681UL | Panasonic Electronic Components | CAP ALUM 680UF 20% 25V SMD | 85% | View |
| 865060257009 | Würth Elektronik | CAP ALUM 680UF 20% 10V SMD | 75% | View |
| EEE-FK1V681AV | Panasonic Electronic Components | CAP ALUM 680UF 20% 35V SMD | 67% | View |
| EMVY100ADA681MJA0G | United Chemi-Con | CAP ALUM 680UF 20% 10V SMD | 65% | View |
Submit your RFQ for AFK687M16G24B-F and get a quote within 24 hours.
