Cornell Dubilier Electronics (CDE)
CAP ALUM 68UF 20% 16V SMD

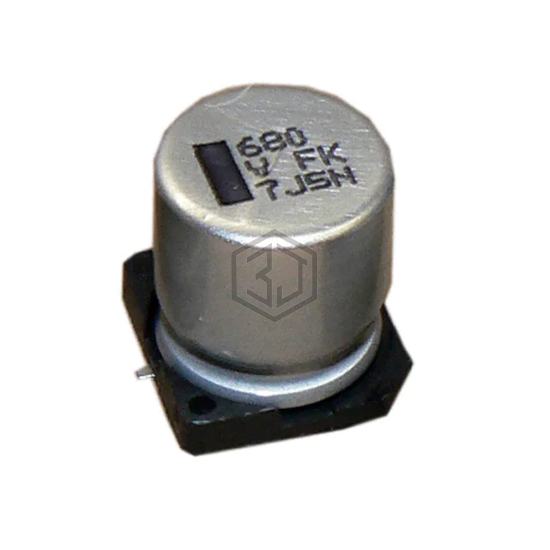

AFK686M16D16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 68UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 4,533
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 360mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Impedance | 360 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.307" W (6.60mm x 7.80mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AFK686M16D16B-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FP1C680AV | Panasonic Electronic Components | CAP ALUM 68UF 20% 16V SMD | 93% | View |
| UWD1C680MCL1GS | Nichicon | CAP ALUM 68UF 20% 16V SMD | 87% | View |
| EEV686M025A9GAA | KEMET | CAP ALUM 68UF 20% 25V SMD | 82% | View |
| EEE-FK1V680SL | Panasonic Electronic Components | CAP ALUM 68UF 20% 35V SMD | 76% | View |
| EEE-FKV680XAV | Panasonic Electronic Components | CAP ALUM 68UF 20% 35V SMD | 75% | View |
| 865060653009 | Würth Elektronik | CAP ALUM 68UF 20% 50V SMD | 75% | View |
