Cornell Dubilier Electronics (CDE)

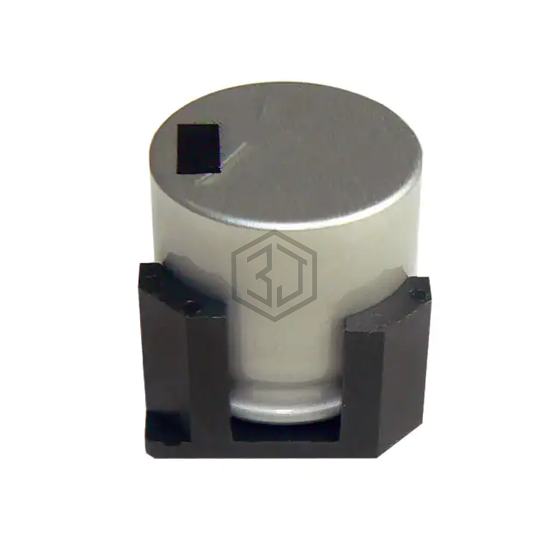

CAP ALUM 330UF 20% 100V SMD
AFK337M2AR44T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 330UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 5,017
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 150mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 687.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 917 mA @ 100 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.827" W (19.00mm x 21.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-FK1K331V | Panasonic Electronic Components | CAP ALUM 330UF 20% 80V SMD | 87% | View |
| MAL214699709E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 80V SMD | 87% | View |
| EEE-FT1H331GP | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V SMD | 75% | View |
| AEA1213331M050R | KYOCERA AVX | ALUMINUM CAP | 74% | View |
| EEE-FT1V331AL | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V SMD | 72% | View |
| MAL214099814E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V SMD | 71% | View |
Submit your RFQ for AFK337M2AR44T-F and get a quote within 24 hours.
