Cornell Dubilier Electronics (CDE)

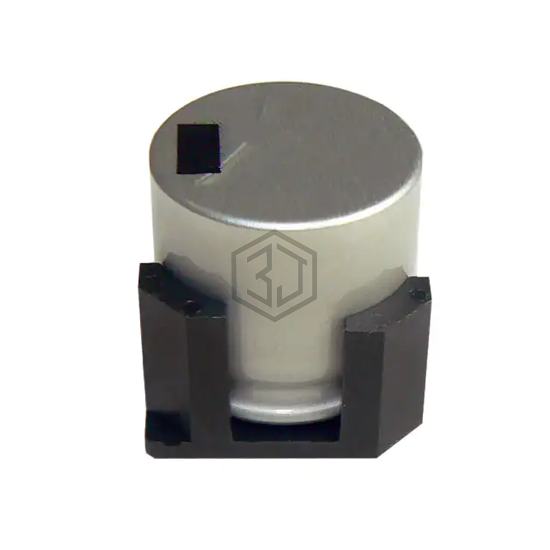

CAP ALUM 330UF 20% 100V SMD
AFK337M2AR44B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 330UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 8,390
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 150mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 687.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 917 mA @ 100 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.827" W (19.00mm x 21.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AFK337M2AR44B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FT1H331GV | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V SMD | 75% | View |
| EXV337M050S9RAA | KEMET | CAP ALUM 330UF 20% 50V SMD | 71% | View |
| EMZR500ARA331MJA0G | United Chemi-Con | CAP ALUM 330UF 20% 50V SMD | 68% | View |
| 35TZV330M10X10.5 | Rubycon | CAP ALUM 330UF 20% 35V SMD | 68% | View |
| EXV337M6R3A9MAA | KEMET | CAP ALUM 330UF 20% 6.3V SMD | 62% | View |
| MAL216099104E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V SMD | 57% | View |
