Cornell Dubilier Electronics (CDE)

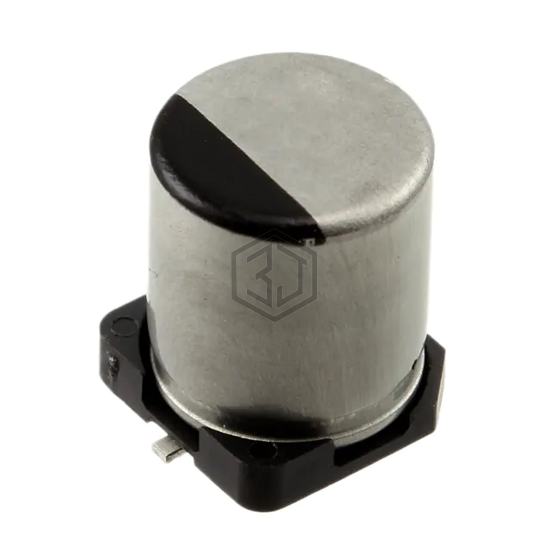

CAP ALUM 22UF 20% 63V SMD
AFK226M63X16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 4,979
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 1.2Ohm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 100 kHz |
| Impedance | 1.2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.323" (8.20mm) |
| Surface Mount Land Size | 0.260" L x 0.307" W (6.60mm x 7.80mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AFK226M63X16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UT226M063HEJTA | Aillen | CAP. ALUM 22UF 63V 20% SMD | 83% | View |
| EEE-FK1H220V | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 78% | View |
| EEE-FK1H220SR | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 73% | View |
| 50TZV22M6.3X6.1 | Rubycon | CAP ALUM 22UF 20% 50V SMD | 72% | View |
| EEE-FK0J220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 6.3V SMD | 68% | View |
| UUD1C220MCL1GS | Nichicon | CAP ALUM 22UF 20% 16V SMD | 68% | View |
Submit your RFQ for AFK226M63X16B-F and get a quote within 24 hours.
