Cornell Dubilier Electronics (CDE)

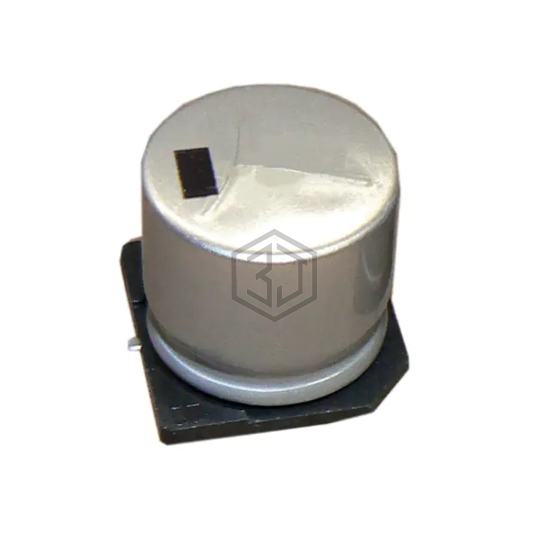

CAP ALUM 22UF 20% 63V SMD
AFK226M63E16T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 8,199
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 1.2Ohm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 100 kHz |
| Impedance | 1.2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Surface Mount Land Size | 0.327" L x 0.374" W (8.30mm x 9.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SHTL63V220MF077 | Meritek | CAP ALUM 22UF 20% 63V SMD | 100% | View |
| 35SZV22M6.3X5.5 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 76% | View |
| VZT220M1VTR-0406S | Surge | CAP ALUM 35V POLAR | 71% | View |
| EEE-FK1V220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V SMD | 66% | View |
| EEE-FK1E220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 25V SMD | 63% | View |
| 35SKV22M6.3X5.5 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 54% | View |
Submit your RFQ for AFK226M63E16T-F and get a quote within 24 hours.
