Cornell Dubilier Electronics (CDE)
CAP ALUM 22UF 20% 63V SMD

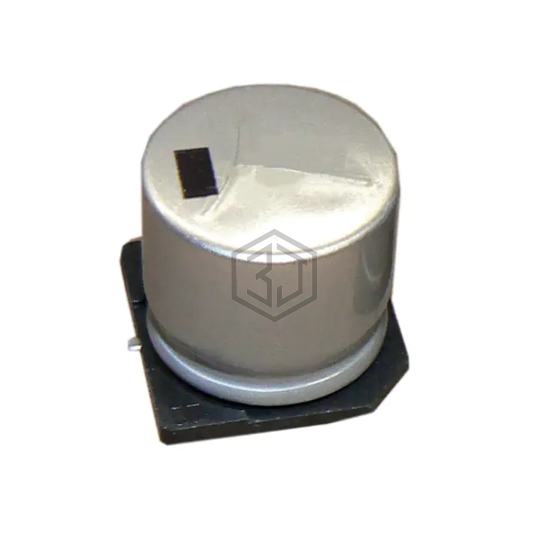

AFK226M63E16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 1,121
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 1.2Ohm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 100 kHz |
| Impedance | 1.2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Surface Mount Land Size | 0.327" L x 0.374" W (8.30mm x 9.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AFK226M63E16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFK226M63E16VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 63V SMD | 100% | View |
| ATB226M100 | Cornell Dubilier Knowles | CAP ALUM 22UF 20% 100V SMD | 85% | View |
| UCD1K220MNS1GS | Nichicon | CAP ALUM 80V POLAR | 84% | View |
| EEE-FN2A220L | Panasonic Electronic Components | CAP ALUM 22UF 20% 100V SMD | 83% | View |
| EEE-FK1H220P | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 77% | View |
| EEE-FN1C220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V SMD | 62% | View |
Submit your RFQ for AFK226M63E16B-F and get a quote within 24 hours.
