Cornell Dubilier Electronics (CDE)
CAP ALUM 22UF 20% 50V SMD

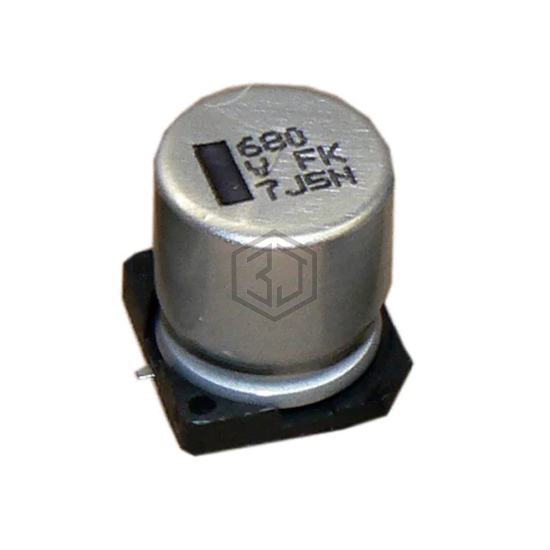

AFK226M50D16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,355
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 880mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 123.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 165 mA @ 100 kHz |
| Impedance | 880 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.307" W (6.60mm x 7.80mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AFK226M50D16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FT1H220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 97% | View |
| EMZA500ARA220MF61G | Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 87% | View |
| ATB226M050 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 50V SMD | 86% | View |
| AFC226M50E16B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 50V SMD | 84% | View |
| 865060442002 | Würth Elektronik | CAP ALUM 22UF 20% 25V SMD | 74% | View |
| EEV226M050A9GAA | KEMET | CAP ALUM 22UF 20% 50V SMD | 53% | View |
