Cornell Dubilier Electronics (CDE)

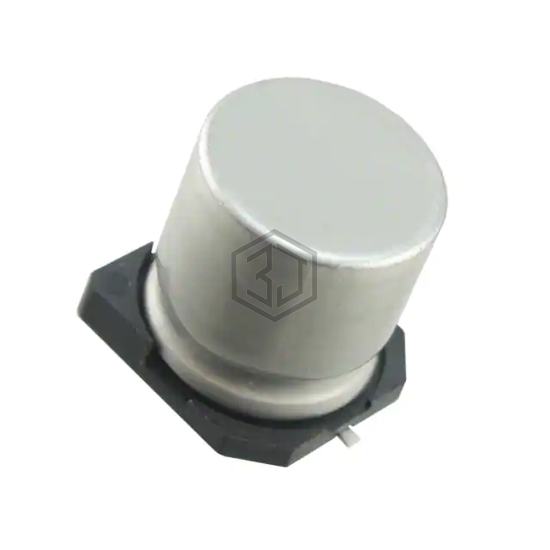

CAP ALUM 1500UF 20% 16V SMD
AFK158M16H32T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1500UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 160
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 60mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 825 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | 60 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | 0.531" L x 0.590" W (13.50mm x 15.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for AFK158M16H32T-F and get a quote within 24 hours.
