Cornell Dubilier Electronics (CDE)

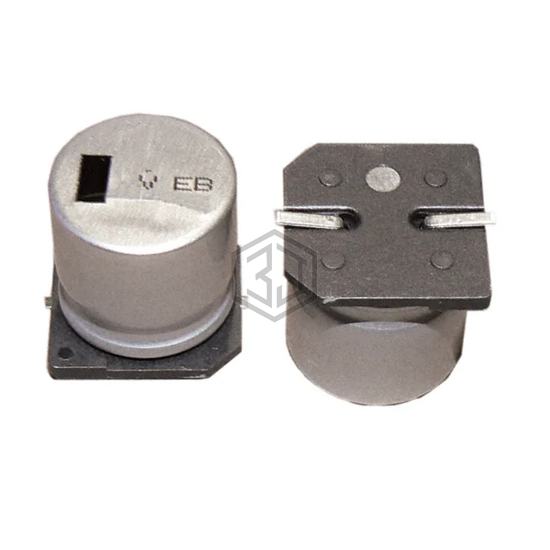

CAP ALUM 22UF 20% 250V SMD
AEB226M2EP44T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 250V SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - SMD.
In Stock: 4,364
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 308 mA @ 120 Hz |
| Ripple Current @ High Frequency | 560 mA @ 100 kHz |
| Impedance | 1.6 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AEB226M2WS44B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 450V SMD | 81% | View |
| EEV-EB2W220M | Panasonic Electronic Components | CAP ALUM 22UF 20% 450V SMD | 80% | View |
| UUJ2E220MNQ1MS | Nichicon | CAP ALUM 22UF 20% 250V SMD | 71% | View |
| UUJ2E220MNJ1MS | Nichicon | CAP ALUM 22UF 20% 250V SMD | 71% | View |
| EMK1VM220E61D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 56% | View |
| 25SGV22M6.3X6.1 | Rubycon | CAP ALUM 22UF 20% 25V SMD | 56% | View |
Submit your RFQ for AEB226M2EP44T-F and get a quote within 24 hours.
