Cornell Dubilier Electronics (CDE)

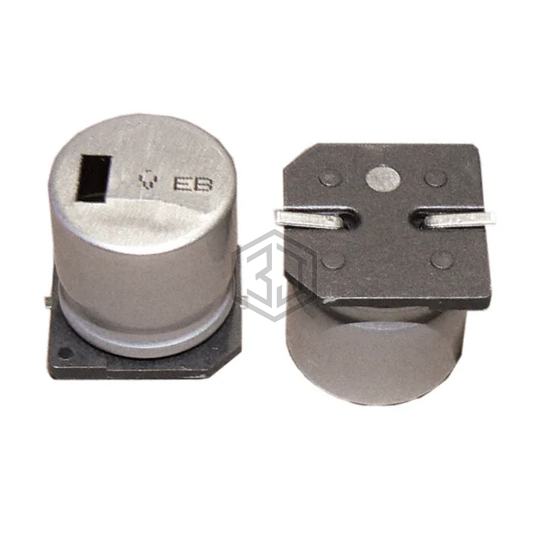

CAP ALUM 22UF 20% 200V SMD
AEB226M2DL32B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 200V SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - SMD.
In Stock: 1,118
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 258.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 470 mA @ 100 kHz |
| Impedance | 1.8 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AEB226M2DL32B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVE251ADA220MLH0S | United Chemi-Con | CAP ALUM 22UF 20% 250V SMD | 79% | View |
| EEV-EB2V220SM | Panasonic Electronic Components | CAP ALUM 22UF 20% 350V SMD | 67% | View |
| MAL219299606E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 400V SMD | 56% | View |
| EMVY100ADA220MD60G | United Chemi-Con | CAP ALUM 22UF 20% 10V SMD | 56% | View |
| EXV226M050S9HAA | KEMET | CAP ALUM 22UF 20% 50V SMD | 53% | View |
| EDH226M200A9SAA | KEMET | CAP ALUM 22UF 20% 200V SMD | 53% | View |
