Cornell Dubilier Electronics (CDE)

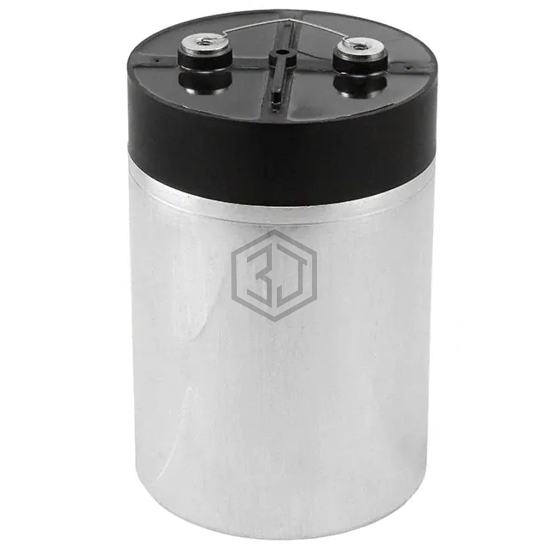

CAP FILM 580UF 10% 1.1KVDC RAD
947D581K112CHRSN is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 580UF 10% 1.1KVDC RAD. Key specifications: mounting type Chassis, Stud Mount, operating temperature -45°C ~ 85°C, voltage rating - dc 1100V (1.1kV), package / case Radial, Can.
In Stock: 5,050
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 580 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 230V |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 2.1 mOhms |
| Operating Temperature | -45°C ~ 85°C |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can |
| Size / Dimension | 3.937" Dia (100.00mm) |
| Height - Seated (Max) | 5.394" (137.00mm) |
| Termination | Threaded, Female |
| Lead Spacing | 1.969" (50.00mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | - |
Submit your RFQ for 947D581K112CHRSN and get a quote within 24 hours.
