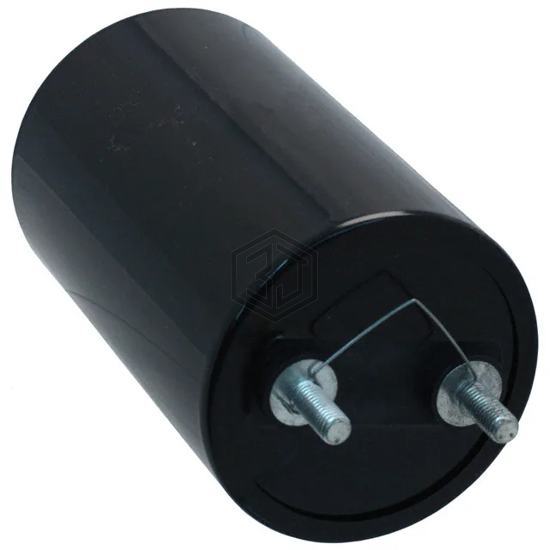

Cornell Dubilier Electronics (CDE)
CAP FILM 270UF 10% 1.2KVDC RAD
947C271K122CCMS is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 270UF 10% 1.2KVDC RAD. Key specifications: mounting type Chassis, Stud Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 1200V (1.2kV), package / case Radial, Can.
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 230V |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.4 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 5.787" (147.00mm) |
| Termination | Threaded, Male |
| Lead Spacing | 1.772" (45.00mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Long Life, Low ESR |
Submit your RFQ for 947C271K122CCMS and get a quote within 24 hours.
