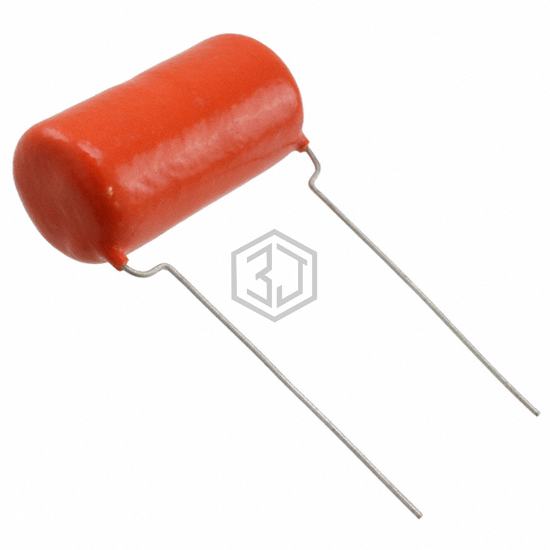

Cornell Dubilier Electronics (CDE)
CAP FILM 0.047UF 5% 1.2KVDC RAD
715P473512MD3 is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 0.047UF 5% 1.2KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage rating - dc 1200V (1.2kV), package / case Radial.
In Stock: 695
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.047 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 475V |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.740" Dia x 1.650" L (18.80mm x 41.90mm) |
| Height - Seated (Max) | 1.051" (26.70mm) |
| Termination | PC Pins |
| Lead Spacing | 1.094" (27.80mm) |
| Applications | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Ratings | - |
| Features | - |
