Cornell Dubilier Electronics (CDE)

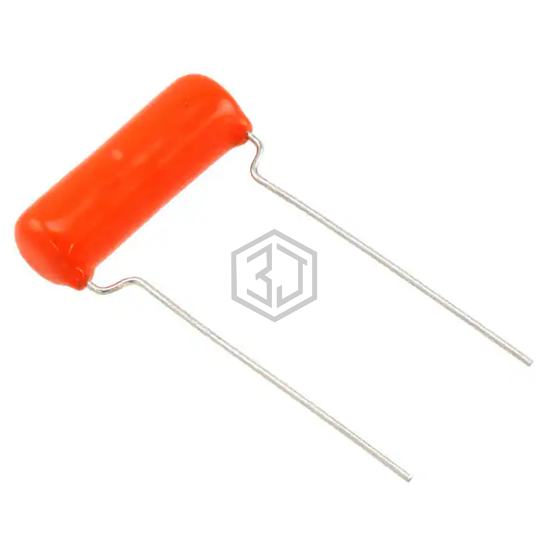

CAP FILM 3300PF 5% 1.6KVDC RAD
715P332516LD3 is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 3300PF 5% 1.6KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage rating - dc 1600V (1.6kV), package / case Radial.
In Stock: 3,142
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.402" Dia x 1.252" L (10.20mm x 31.80mm) |
| Height - Seated (Max) | 0.693" (17.60mm) |
| Termination | PC Pins |
| Lead Spacing | 0.720" (18.30mm) |
| Applications | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R745I1330DQ30J | KEMET | CAP FILM METAL RAD POLYPROP | 100% | View |
| BFC238353332 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3300PF 5% 1.6KVDC RAD | 99% | View |
| PWS2151330KD | Nichicon | 1500V, 0.0033UF, 10 PERCENT, AXI | 98% | View |
| MKS4S013303C00MI00 | WIMA | CAP FILM 3300PF 20% 1.5KVDC RAD | 96% | View |
| BFC237521332 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3300PF 3.5% 1KVDC RAD | 90% | View |
| BFC236653332 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3300PF 10% 400VDC RAD | 70% | View |
Submit your RFQ for 715P332516LD3 and get a quote within 24 hours.
