Cornell Dubilier Electronics (CDE)
CAP FILM 0.015UF 5% 200VDC RAD

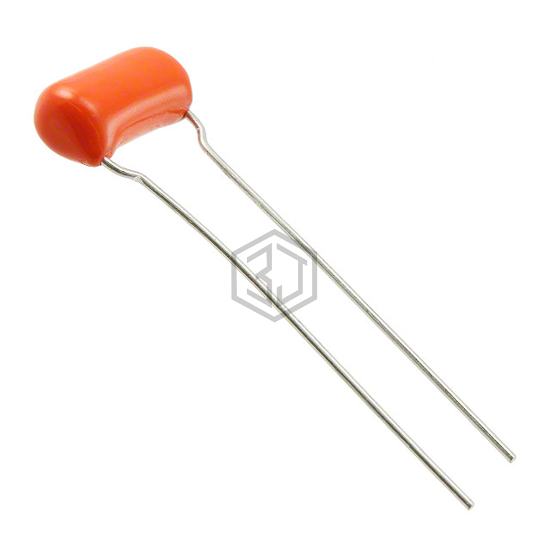

715P15352JD3 is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 0.015UF 5% 200VDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage rating - dc 200V, package / case Radial.
In Stock: 4,895
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.015 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 155V |
| Voltage Rating - DC | 200V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.280" Dia x 0.701" L (7.10mm x 17.80mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.375" (9.52mm) |
| Applications | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Ratings | - |
| Features | - |
