Cornell Dubilier Electronics (CDE)
CAP FILM 10000PF 5% 1.6KVDC RAD

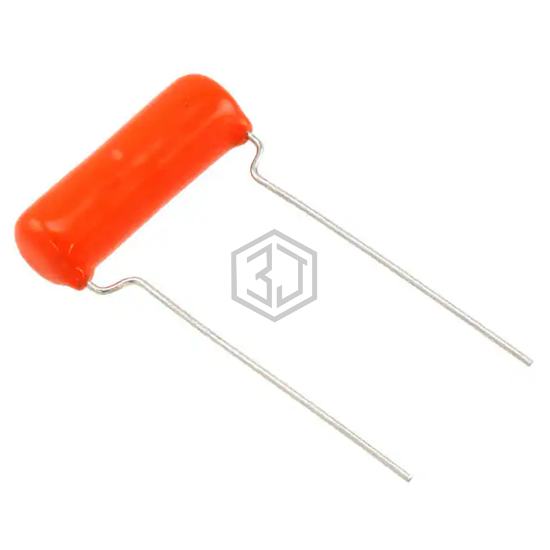

715P103516LD3 is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 10000PF 5% 1.6KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage rating - dc 1600V (1.6kV), package / case Radial.
In Stock: 819
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.319" Dia x 1.252" L (8.10mm x 31.80mm) |
| Height - Seated (Max) | 0.902" (22.90mm) |
| Termination | PC Pins |
| Lead Spacing | 0.720" (18.30mm) |
| Applications | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Ratings | - |
| Features | - |
Submit your RFQ for 715P103516LD3 and get a quote within 24 hours.
