Cornell Dubilier Electronics (CDE)

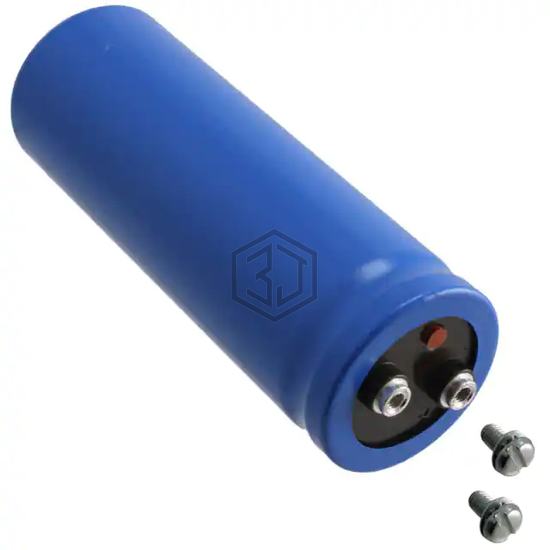

CAP ALUM 1400UF 450V SCREW
550C142T450BF2B is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1400UF 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1400 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 53.3mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.875" (22.22mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 5.625" (142.88mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for 550C142T450BF2B and get a quote within 24 hours.
