Cornell Dubilier Electronics (CDE)

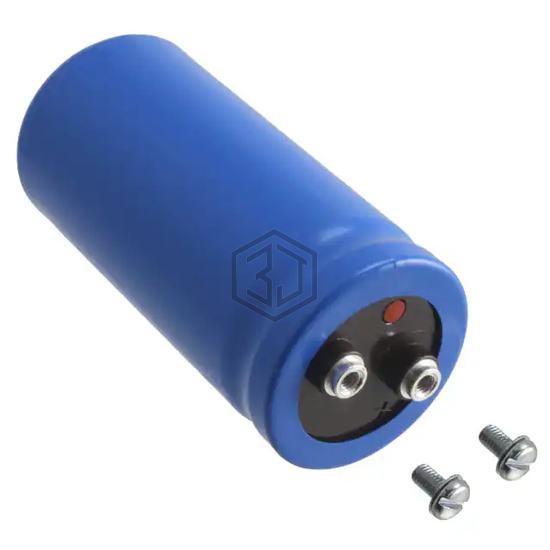

CAP ALUM 15000UF 50V SCREW
500C153T050BC2B is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 15000UF 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 95°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 52
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 20mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 95°C |
| Operating Temperature | -40°C ~ 95°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for 500C153T050BC2B and get a quote within 24 hours.
