Cornell Dubilier Electronics (CDE)
CAP ALUM 1200UF 250V SCREW

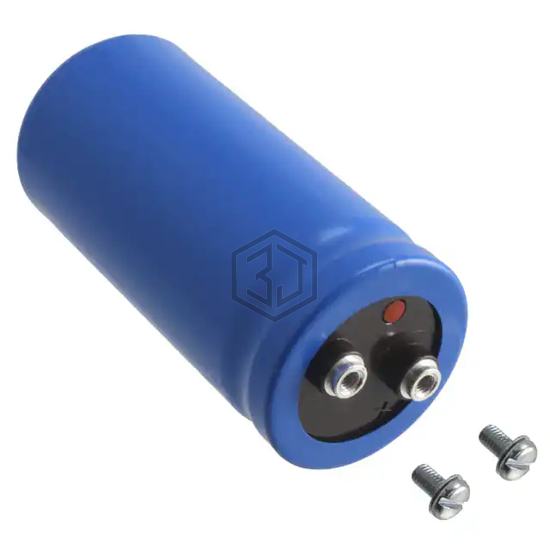

500C122T250BA2B is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1200UF 250V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 95°C, voltage - rated 250 V, package / case Radial, Can - Screw Terminals.
In Stock: 43
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 94.6mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 95°C |
| Operating Temperature | -40°C ~ 95°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.21 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 2.125" (53.98mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for 500C122T250BA2B and get a quote within 24 hours.
