Cornell Dubilier Electronics (CDE)

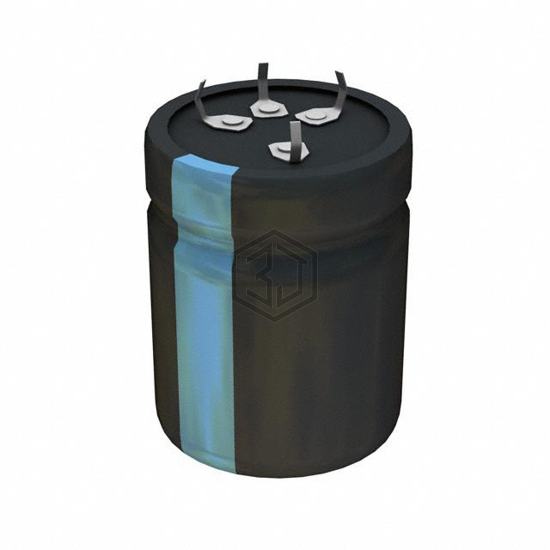

CAP ALUM 560UF 20% 450V SNAP
383LX561M450N052 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 222
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 296mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
Submit your RFQ for 383LX561M450N052 and get a quote within 24 hours.
