Cornell Dubilier Electronics (CDE)
CAP ALUM 27000UF 20% 80V SNAP

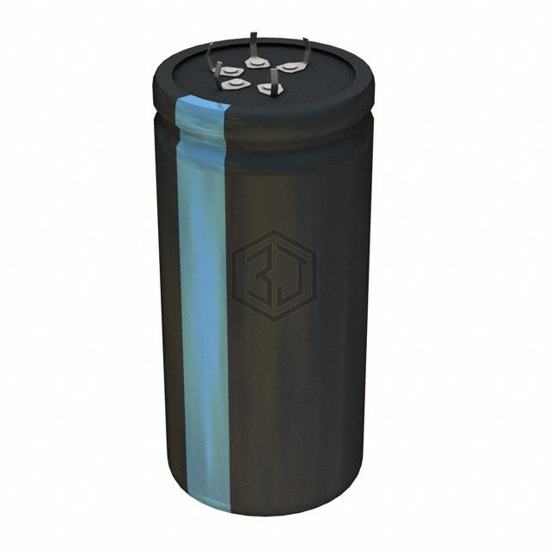

383LX273M080B102VS is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 27000UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 27000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 18mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 9.64 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 4.213" (107.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
Submit your RFQ for 383LX273M080B102VS and get a quote within 24 hours.
