Cornell Dubilier Electronics (CDE)
CAP ALUM 22000UF 20% 80V SNAP

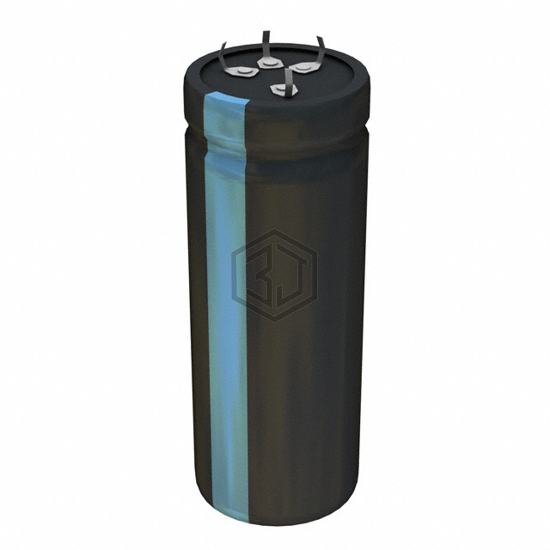

383LX223M080N102 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22000UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 7,782
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 19mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.95 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.99 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 4.213" (107.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALC80F223EH063 | KEMET | CAP ALUM 22000UF 20% 63V SNAP | 74% | View |
| MAL215836223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V SNAP | 64% | View |
| 35MXC22000MEFC30X50 | Rubycon | CAP ALUM 22000UF 20% 35V SNAP | 62% | View |
| EKMH350VSN223MA50U | United Chemi-Con | CAP ALUM 22000UF 20% 35V SNAP | 61% | View |
| 381LQ223M025K032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 25V SNAP | 56% | View |
| 381LQ223M025J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 25V SNAP | 56% | View |
Submit your RFQ for 383LX223M080N102 and get a quote within 24 hours.
