Cornell Dubilier Electronics (CDE)
CAP ALUM 22000UF 20% 63V SNAP

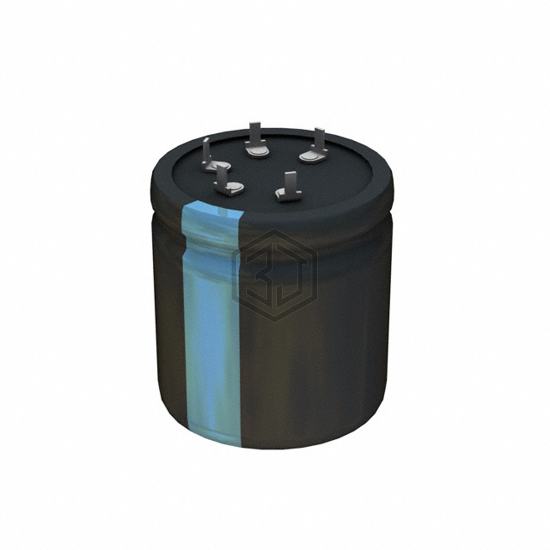

383LX223M063B052V is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22000UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 4,283
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 19mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.76 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.77 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205876223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V SNAP | 68% | View |
| 383LX223M035N042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 35V SNAP | 68% | View |
| 381LX223M035A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 35V SNAP | 68% | View |
| MAL225650223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 35V SNAP | 65% | View |
| EKMH250VNN223MR45U | United Chemi-Con | CAP ALUM 22000UF 20% 25V SNAP | 53% | View |
| B41505A4229M2 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 16V SNAP | 50% | View |
