Cornell Dubilier Electronics (CDE)
CAP ALUM 2200UF 20% 250V SNAP

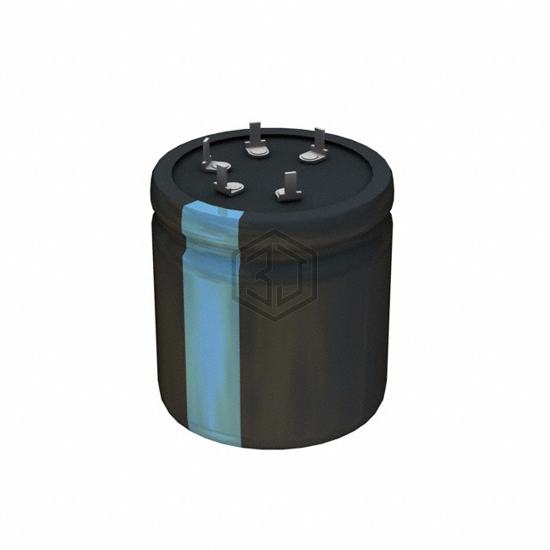

383LX222M250B052V is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2200UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 3,847
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 98mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.09 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508A2228M67 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 200V SNAP | 78% | View |
| B43508A2228M82 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 200V SNAP | 78% | View |
| EGPD500ELL222ML35H | United Chemi-Con | CAP ALUM 2200UF 20% 50V RADIAL | 75% | View |
| MAL212017222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 40V AXIAL | 59% | View |
| B41252B9228M | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 100V SNAP | 57% | View |
| UPA1A222MHD6TO | Nichicon | CAP ALUM 2200UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for 383LX222M250B052V and get a quote within 24 hours.
