Cornell Dubilier Electronics (CDE)
CAP ALUM 1200UF 20% 450V SNAP

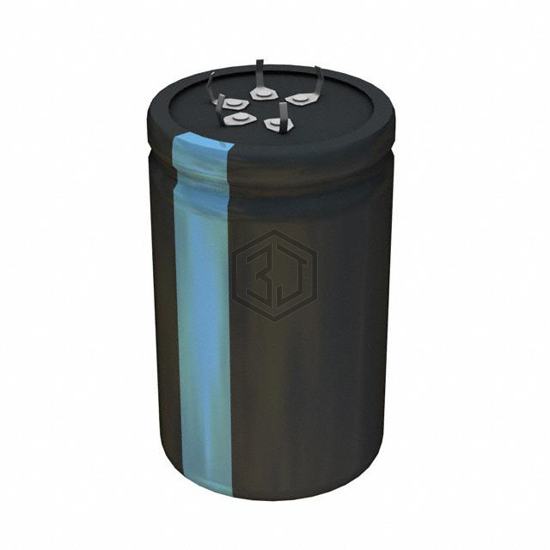

383LX122M450B082VS is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1200UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 403
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 152mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.58 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 3.228" (82.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
Submit your RFQ for 383LX122M450B082VS and get a quote within 24 hours.
