Cornell Dubilier Electronics (CDE)
CAP ALUM 68000UF 20% 10V SNAP

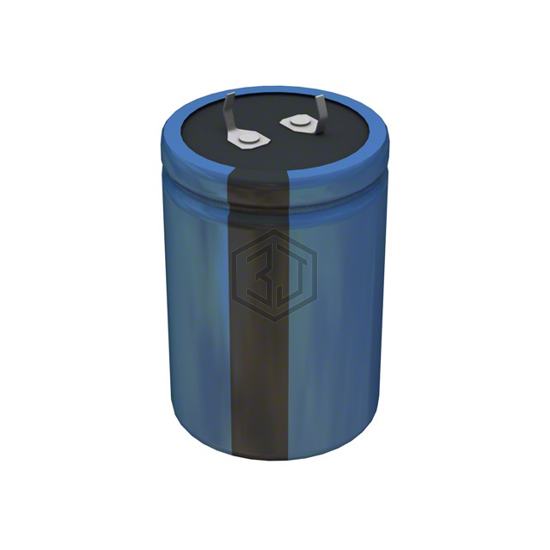

381LX683M010A052 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 68000UF 20% 10V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - Snap-In.
In Stock: 2,198
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.3 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH100VSN683MA50U | United Chemi-Con | CAP ALUM 68000UF 20% 10V SNAP | 98% | View |
| 16MXG68000MEFCSN35X50 | Rubycon | CAP ALUM 68000UF 20% 16V SNAP | 78% | View |
| EKMH6R3VSN683MA40U | United Chemi-Con | CAP ALUM 68000UF 20% 6.3V SNAP | 77% | View |
| EKMH6R3VSN683MR50U | United Chemi-Con | CAP ALUM 68000UF 20% 6.3V SNAP | 77% | View |
| 383LL733M016N052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 73000UF 20% 16V SNAP | 70% | View |
| MAL216255683E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68000UF 20% 16V SNAP | 62% | View |
Submit your RFQ for 381LX683M010A052 and get a quote within 24 hours.
