Cornell Dubilier Electronics (CDE)

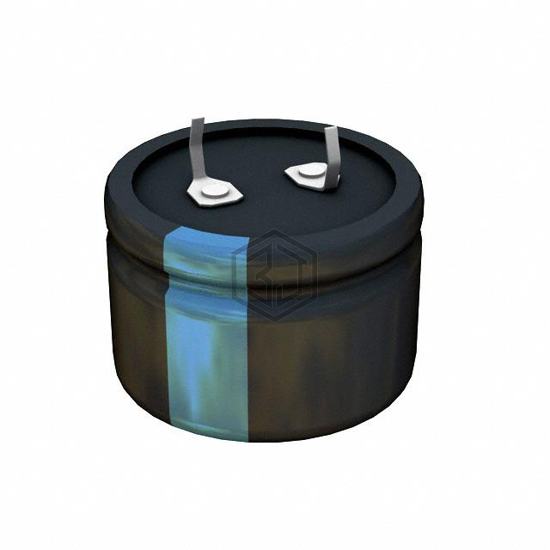

CAP ALUM 68UF 20% 400V SNAP
381LX680M400K202 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 68UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 5,915
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 400 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| REA1350680M400B | KYOCERA AVX | CAP ALUM 400V POLAR | 97% | View |
| REA1060680M350B | KYOCERA AVX | CAP ALUM 350V POLAR | 93% | View |
| 400KXW68MEFC12.5X40 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 87% | View |
| MAL211890004E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 200V T/H | 64% | View |
| EEU-FC1J680 | Panasonic Electronic Components | CAP ALUM 68UF 20% 63V RADIAL | 64% | View |
| MAL215252689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 200V RADIAL | 63% | View |
Submit your RFQ for 381LX680M400K202 and get a quote within 24 hours.
