Cornell Dubilier Electronics (CDE)
CAP ALUM 560UF 20% 200V SNAP

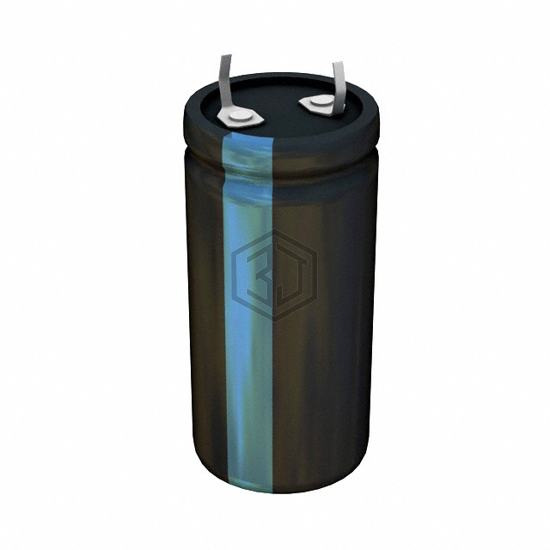

381LX561M200H452 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,135
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 355mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
381LX561M200H452 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200MXC560MEFCSN25X30 | Rubycon | CAP ALUM 560UF 20% 200V SNAP | 95% | View |
| B43508F2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 88% | View |
| EEU-FC1J561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 63V RADIAL | 76% | View |
| B43508B9567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 65% | View |
| 35ZLH560MEFC10X20 | Rubycon | CAP ALUM 560UF 20% 35V RADIAL | 61% | View |
| B41505A9567M7 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 100V SNAP | 58% | View |
Submit your RFQ for 381LX561M200H452 and get a quote within 24 hours.
