Cornell Dubilier Electronics (CDE)
CAP ALUM 3900UF 20% 100V SNAP

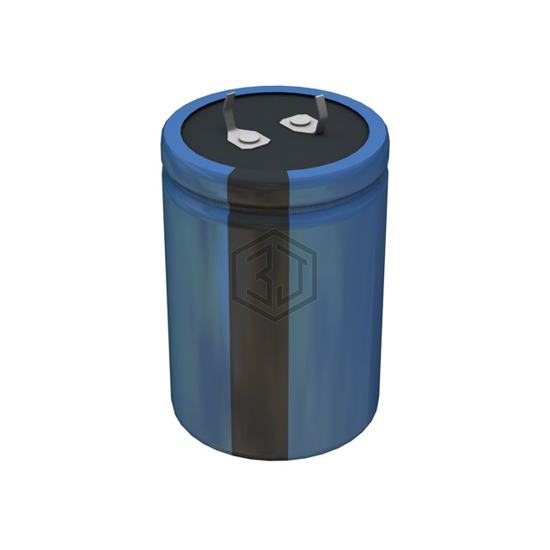

381LX392M100A052 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3900UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 4,294
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 31mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.4 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
381LX392M100A052 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH800VSN392MA35T | United Chemi-Con | CAP ALUM 3900UF 20% 80V SNAP | 82% | View |
| MAL215838392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 63V SNAP | 81% | View |
| LGY1K392MELB40 | Nichicon | CAP ALUM 3900UF 20% 80V SNAP | 75% | View |
| B41605E7398M2 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 40V SNAP | 59% | View |
| B41605E8398M9 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 63V RADIAL | 58% | View |
| B41605E8398M2 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 63V SNAP | 58% | View |
Submit your RFQ for 381LX392M100A052 and get a quote within 24 hours.
