Cornell Dubilier Electronics (CDE)
CAP ALUM 2700UF 20% 200V SNAP

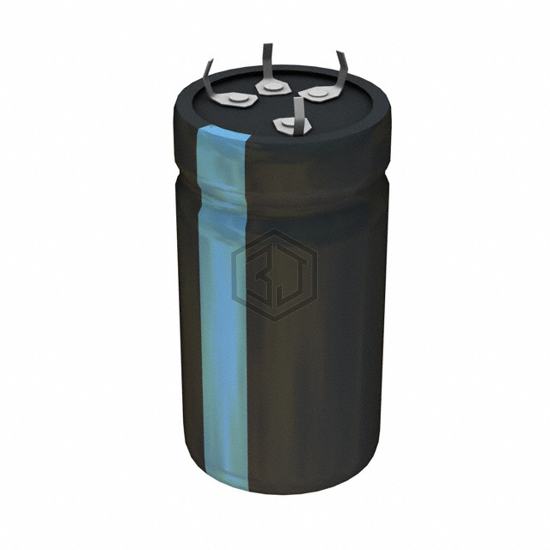

381LX272M200A062 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2700UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 3,693
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.65 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.11 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.559" (65.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
381LX272M200A062 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43254A1278M | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 160V SNAP | 85% | View |
| EKY-500ELL272MM40S | United Chemi-Con | CAP ALUM 2700UF 20% 50V RADIAL | 66% | View |
| B41890A7278M | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 35V RADIAL | 65% | View |
| B41895A7278M | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 35V RADIAL | 60% | View |
| EGXF350ELL272MU30S | United Chemi-Con | CAP ALUM 2700UF 20% 35V RAD TH | 57% | View |
| EKMH800VNN272MR35U | United Chemi-Con | CAP ALUM 2700UF 20% 80V SNAP | 54% | View |
