Cornell Dubilier Electronics (CDE)
CAP ALUM 470UF 20% 450V SNAP

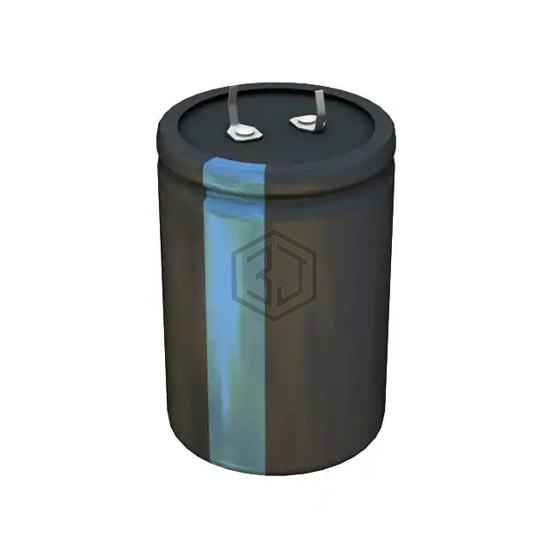

381LR471M450A052 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 470UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 3,031
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 282mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.47 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.53 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450VXH470MEFCSN30X50 | Rubycon | CAP ALUM 470UF 20% 450V SNAP | 93% | View |
| LQSW6471MELC40 | Nichicon | CAP ALUM 470UF 20% 420V SNAP | 84% | View |
| 861111485030 | Würth Elektronik | CAP ALUM 470UF 20% 450V SNAP | 81% | View |
| 477LMX350M2EE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 350V SNAP | 79% | View |
| EKXJ201ELL471ML50S | United Chemi-Con | CAP ALUM 470UF 20% 200V RADIAL | 68% | View |
| MAL209452471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 200V SNAP | 57% | View |
Submit your RFQ for 381LR471M450A052 and get a quote within 24 hours.
