Cornell Dubilier Electronics (CDE)
CAP ALUM 560UF 20% 315V SNAP

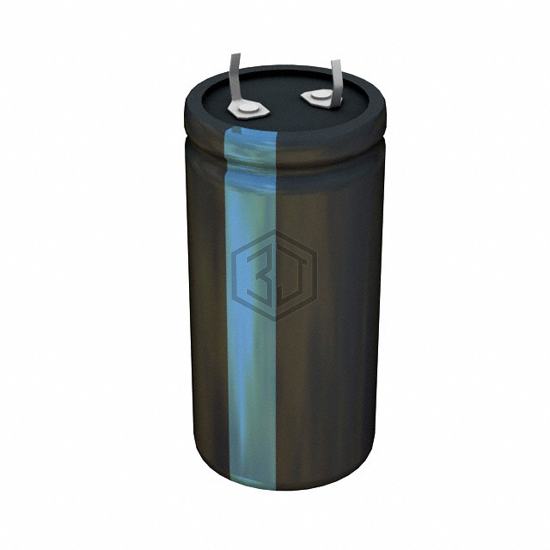

381LQ561M315J052 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 9,426
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | 360mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGR2E561MELB35 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 91% | View |
| B43642A5567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 67% | View |
| MAL225952561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 200V SNAP | 64% | View |
| B41858C6567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 50V RADIAL | 60% | View |
| 25ZLQ560MEFC10X12.5 | Rubycon | CAP ALUM 560UF 20% 25V RADIAL | 56% | View |
| EEU-FC1E561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 25V RADIAL | 54% | View |
