Cornell Dubilier Electronics (CDE)

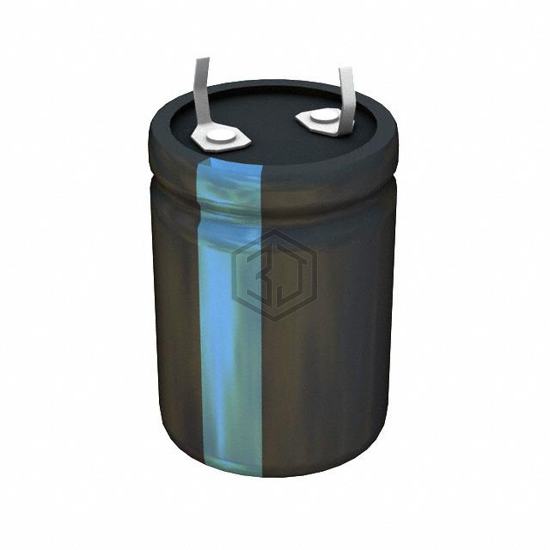

CAP ALUM 560UF 20% 160V SNAP
381LQ561M160H022 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 9,335
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 355mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43642A2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 89% | View |
| B43508E2567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 78% | View |
| B43504A2567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 76% | View |
| EEU-FM1V561LB | Panasonic Electronic Components | CAP ALUM 560UF 20% 35V RADIAL | 70% | View |
| 757D567M035DG3D | Vishay Sprague | CAP ALUM 560UF 20% 35V RADIAL | 68% | View |
| B43508A5567M82 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 61% | View |
Submit your RFQ for 381LQ561M160H022 and get a quote within 24 hours.
