Cornell Dubilier Electronics (CDE)
CAP ALUM 56UF 20% 400V SNAP

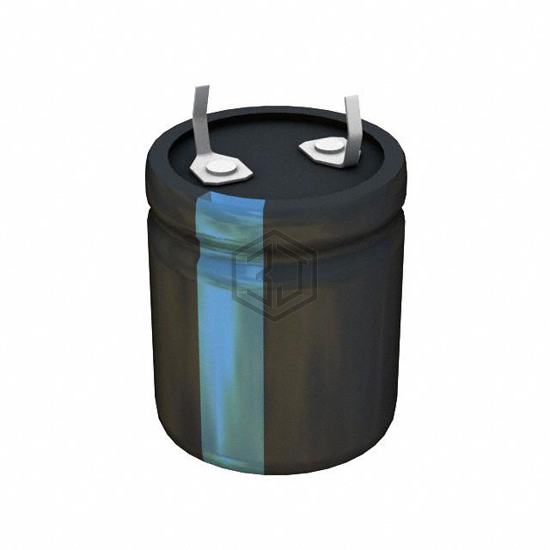

381EL560M400H012 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 56UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 1,648
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 2.63Ohm @ 120Hz |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 710 mA @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
381EL560M400H012 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPHW6560MHD | Nichicon | CAP ALUM 56UF 20% 420V RADIAL | 95% | View |
| UPTW6560MHD | Nichicon | CAP ALUM 56UF 20% 420V RADIAL | 92% | View |
| EKXL401ELL560MU25S | United Chemi-Con | CAP ALUM 56UF 20% 400V RADIAL TH | 86% | View |
| 450BXW56MEFR16X25 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 81% | View |
| UCY2D560MPD1TD | Nichicon | CAP ALUM 56UF 20% 200V RADIAL | 70% | View |
| EGXF201ELL560MK20S | United Chemi-Con | CAP ALUM 56UF 20% 200V RADIAL TH | 66% | View |
Submit your RFQ for 381EL560M400H012 and get a quote within 24 hours.
