Cornell Dubilier Electronics (CDE)

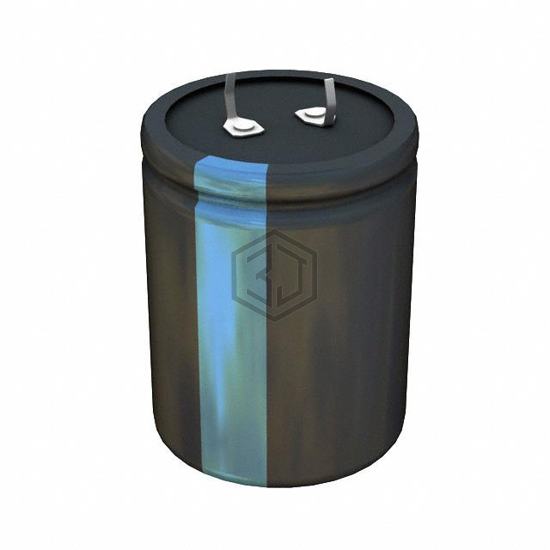

CAP ALUM 680UF 20% 315V SNAP
380LX681M315A452 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 680UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 9,908
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | 293mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 4 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43601B9687M62 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 400V SNAP | 89% | View |
| B43501C2687M67 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 87% | View |
| B43601E2687M60 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 86% | View |
| B43644A5687M007 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 450V SNAP | 84% | View |
| EGVD101ELL681MMP1H | United Chemi-Con | CAP ALUM 680UF 20% 100V RADIAL | 74% | View |
| B43508G2687M80 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 71% | View |
