Cornell Dubilier Electronics (CDE)
CAP ALUM 680UF 20% 80V SNAP

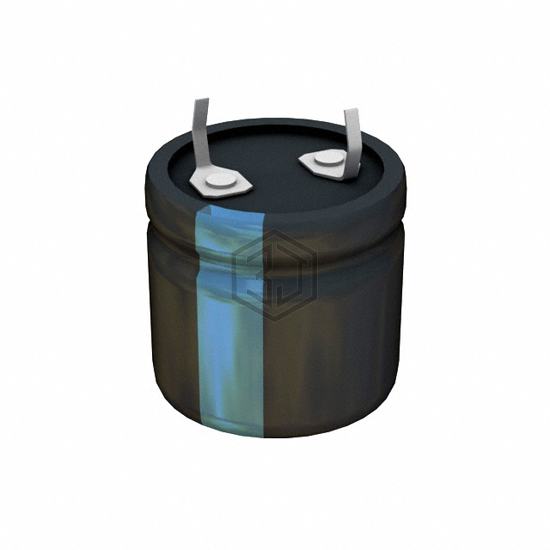

380LX681M080H202 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 680UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 4,644
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 450mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
380LX681M080H202 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211818681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V AXIAL | 85% | View |
| EKZE101ELL681ML40S | United Chemi-Con | CAP ALUM 680UF 20% 100V RADIAL | 82% | View |
| EEU-FC1C681L | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V RADIAL | 62% | View |
| B43508C2687M | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 59% | View |
| 25WXA680MEFCG412.5X16 | Rubycon | CAP ALUM 680UF 20% 25V RADIAL | 57% | View |
| B41896C5687M008 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for 380LX681M080H202 and get a quote within 24 hours.
