Cornell Dubilier Electronics (CDE)
CAP ALUM 680UF 20% 80V SNAP

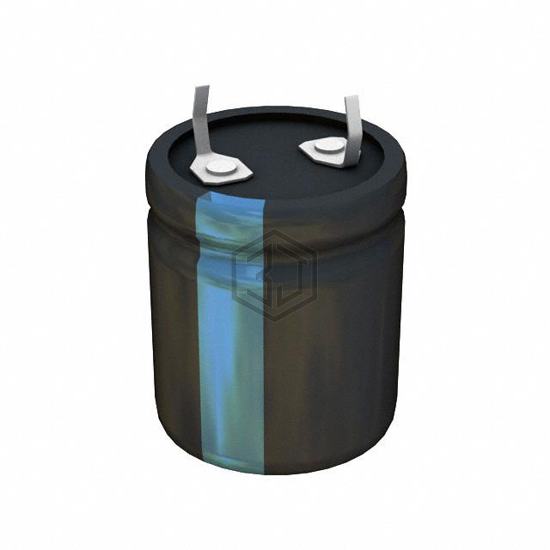

380LX681M080H012 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 680UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 7,114
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 390mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UKL1J681MHD | Nichicon | CAP ALUM 680UF 20% 63V RADIAL | 85% | View |
| B41866C8687M004 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 63V RADIAL | 85% | View |
| EKZN101ELL681MMN3S | United Chemi-Con | CAP ALUM 680UF 20% 100V RADIAL | 73% | View |
| UPW1J681MHH6 | Nichicon | CAP ALUM 680UF 20% 63V RADIAL | 73% | View |
| UBX1H681MHL1TN | Nichicon | CAP ALUM 680UF 20% 50V RADIAL | 64% | View |
| ECE-S2EU681U | Panasonic Electronic Components | CAP ALUM 680UF 20% 250V SNAP | 58% | View |
Submit your RFQ for 380LX681M080H012 and get a quote within 24 hours.
