Cornell Dubilier Electronics (CDE)
CAP ALUM 560UF 20% 500V SNAP

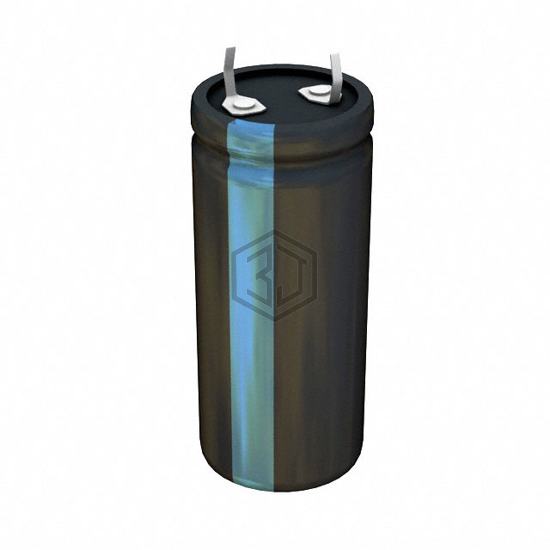

380LX561M500A082 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 4,060
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 360mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.8 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.228" (82.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH451VNN561MA60M | United Chemi-Con | CAP ALUM 560UF 20% 450V SNAP | 93% | View |
| B43511A0567M007 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 420V SNAP | 91% | View |
| B43630B5567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 88% | View |
| B43305B5567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 86% | View |
| MAL225966561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 400V SNAP | 79% | View |
| 450MXG560MEFCSN35X45 | Rubycon | CAP ALUM 560UF 20% 450V SNAP | 74% | View |
Submit your RFQ for 380LX561M500A082 and get a quote within 24 hours.
