Cornell Dubilier Electronics (CDE)

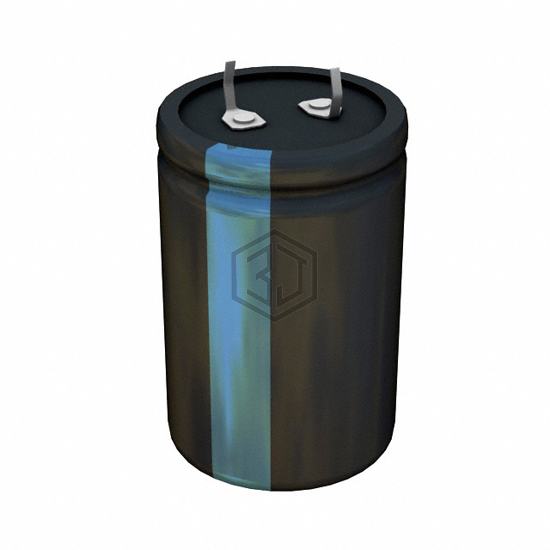

CAP ALUM 560UF 20% 315V SNAP
380LX561M315K452 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 2,013
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | 355mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.6 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXS3B1VSN561MQ50S | United Chemi-Con | CAP ALUM 560UF 20% 315V SNAP | 88% | View |
| 250MXG560MEFCSN22X45 | Rubycon | CAP ALUM 560UF 20% 250V SNAP | 86% | View |
| B43634A5567M007 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 78% | View |
| ALA8DF561DF450 | KEMET | CAP ALUM 560UF 20% 450V SNAP | 77% | View |
| B43504E2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 66% | View |
| 381LQ561M180J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 180V SNAP | 57% | View |
Submit your RFQ for 380LX561M315K452 and get a quote within 24 hours.
