Cornell Dubilier Electronics (CDE)
CAP ALUM 560UF 20% 315V SNAP

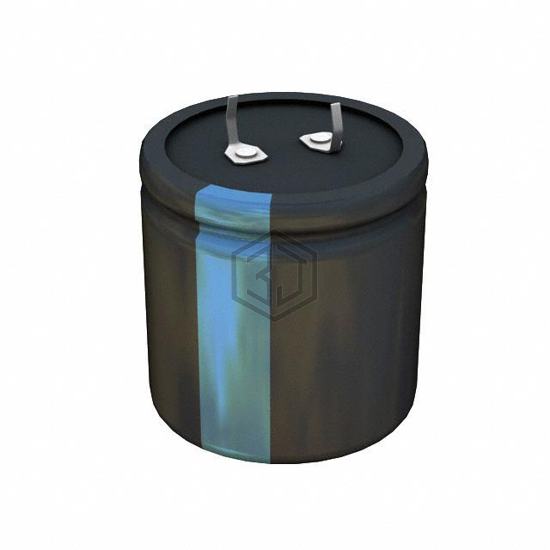

380LX561M315A032 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 6,078
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | 355mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.6 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LQ561M315J052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 315V SNAP | 99% | View |
| B43540F2567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 89% | View |
| 200HXC560MEFCSN22X45 | Rubycon | CAP ALUM 560UF 20% 200V SNAP | 82% | View |
| EKMW421VSN561MR45S | United Chemi-Con | CAP ALUM 560UF 20% 420V SNAP | 80% | View |
| ALA7DD561DE450 | KEMET | CAP ALUM 560UF 20% 450V SNAP | 77% | View |
| EKMQ451VSN561MA45W | United Chemi-Con | CAP ALUM 560UF 20% 450V SNAP | 77% | View |
Submit your RFQ for 380LX561M315A032 and get a quote within 24 hours.
