Cornell Dubilier Electronics (CDE)

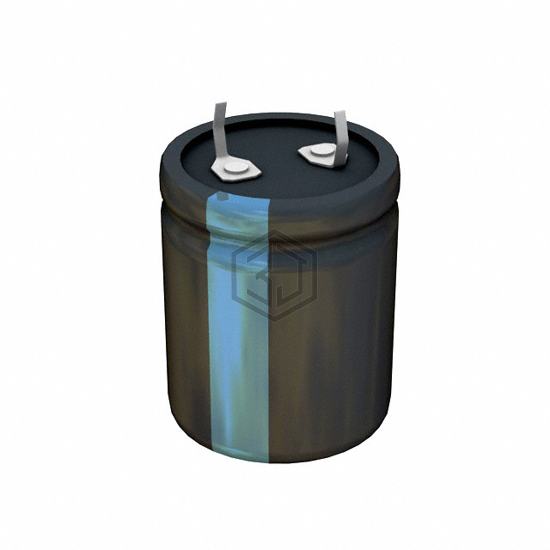

CAP ALUM 560UF 20% 180V SNAP
380LX561M180J022 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 9,105
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | 355mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43540A2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 95% | View |
| B43601B2567M82 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 91% | View |
| B43601E2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 86% | View |
| B43508G2567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 72% | View |
| B43601B5567M80 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 65% | View |
| B43547A9567M062 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 62% | View |
Submit your RFQ for 380LX561M180J022 and get a quote within 24 hours.
