Cornell Dubilier Electronics (CDE)

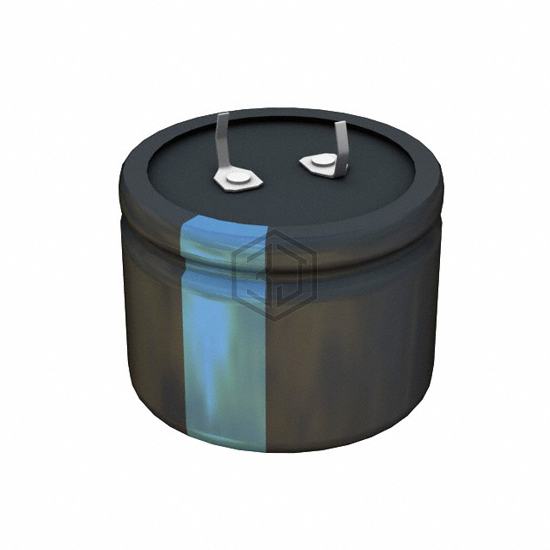

CAP ALUM 560UF 20% 160V SNAP
380LX561M160A202 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 9,338
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 420mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
380LX561M160A202 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 567LBB160M2BE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 560UF 20% 160V SNAP | 86% | View |
| B43231C1567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 160V SNAP | 85% | View |
| B43508F2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 74% | View |
| 35ZLH560MEFC10X20 | Rubycon | CAP ALUM 560UF 20% 35V RADIAL | 65% | View |
| EEU-FC1J561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 63V RADIAL | 64% | View |
| 567LBB250M2BH | Cornell Dubilier / Illinois Capacitor | CAP ALUM 560UF 20% 250V SNAP | 56% | View |
Submit your RFQ for 380LX561M160A202 and get a quote within 24 hours.
