Cornell Dubilier Electronics (CDE)

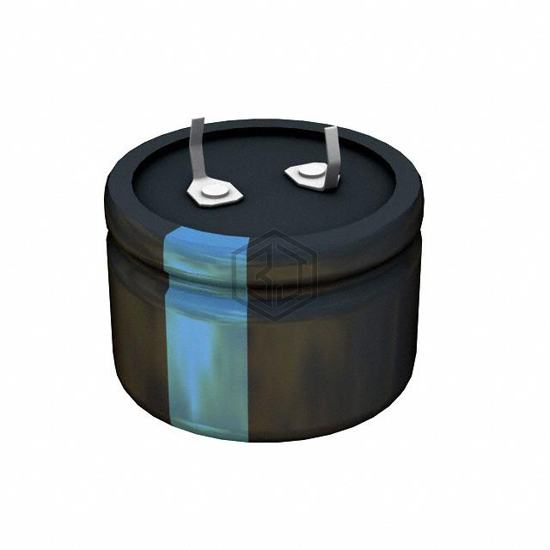

CAP ALUM 4700UF 20% 35V SNAP
380LX472M035K202 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4700UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 4,315
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 90mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211846472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V T/H | 81% | View |
| MAL225055472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V RADIAL | 68% | View |
| EKMH630VNN472MA30U | United Chemi-Con | CAP ALUM 4700UF 20% 63V SNAP | 65% | View |
| 16WXA4700MEFCGC18X20 | Rubycon | CAP ALUM 4700UF 20% 16V RADIAL | 58% | View |
| 500D478M016GK2A | Vishay Sprague | CAP ALUM 4700UF 20% 16V AXIAL | 56% | View |
| 380LQ472M063K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 63V SNAP | 54% | View |
Submit your RFQ for 380LX472M035K202 and get a quote within 24 hours.
