Cornell Dubilier Electronics (CDE)

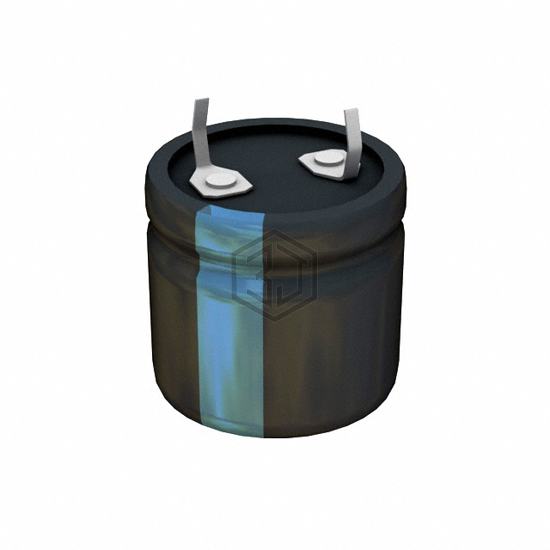

CAP ALUM 4700UF 20% 16V SNAP
380LX472M016H202 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4700UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 7,945
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 160mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
380LX472M016H202 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UFW1C472MHD | Nichicon | CAP ALUM 4700UF 20% 16V RADIAL | 86% | View |
| B41858C4478M | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 16V RADIAL | 84% | View |
| B41252A5478M002 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 25V SNAP | 79% | View |
| MAL225064472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V RADIAL | 76% | View |
| 25PK4700MEFCGC16X25 | Rubycon | CAP ALUM 4700UF 20% 25V RADIAL | 72% | View |
| MAL214853472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 6.3V RADIAL | 59% | View |
Submit your RFQ for 380LX472M016H202 and get a quote within 24 hours.
