Cornell Dubilier Electronics (CDE)
CAP ALUM 33000UF 20% 35V SNAP

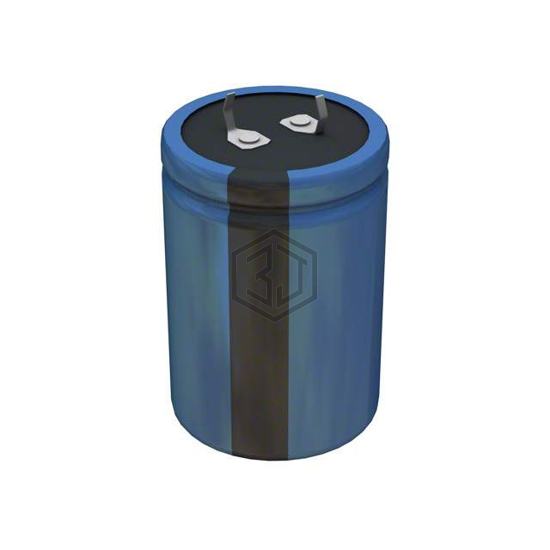

380LX333M035A052 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 33000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 6,938
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 18mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.15 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.22 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25USG33000MEFCSN30X45 | Rubycon | CAP ALUM 33000UF 20% 25V SNAP | 87% | View |
| 339LBB016M2ED | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33000UF 20% 16V SNAP | 65% | View |
| MALIEYN07LD533C02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 10V SNAP | 65% | View |
| MAL205645333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 16V SNAP | 58% | View |
| ALC70D333EL063 | KEMET | CAP ALUM 33000UF 20% 63V SNAP | 58% | View |
| EKMH6R3VNN333MQ50U | United Chemi-Con | CAP ALUM 33000UF 20% 6.3V SNAP | 56% | View |
