Cornell Dubilier Electronics (CDE)
CAP ALUM 270UF 20% 500V SNAP

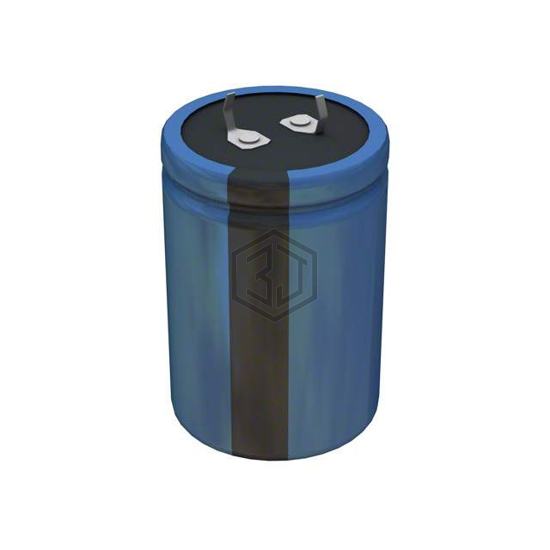

380LX271M500A052 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 270UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 2,151
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 746mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.1 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450HXG270MEFC35X30 | Rubycon | CAP ALUM 270UF 20% 450V SNAP | 92% | View |
| 450MXG270MEFCSN22X55 | Rubycon | CAP ALUM 270UF 20% 450V SNAP | 83% | View |
| ALA8DD271CC400 | KEMET | CAP ALUM 270UF 20% 400V SNAP | 79% | View |
| MAL225726271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 400V SNAP | 78% | View |
| LGG2W271MELA40 | Nichicon | CAP ALUM 270UF 20% 450V SNAP | 70% | View |
| 861141486021 | Würth Elektronik | CAP ALUM 270UF 20% 450V SNAP | 69% | View |
Submit your RFQ for 380LX271M500A052 and get a quote within 24 hours.
