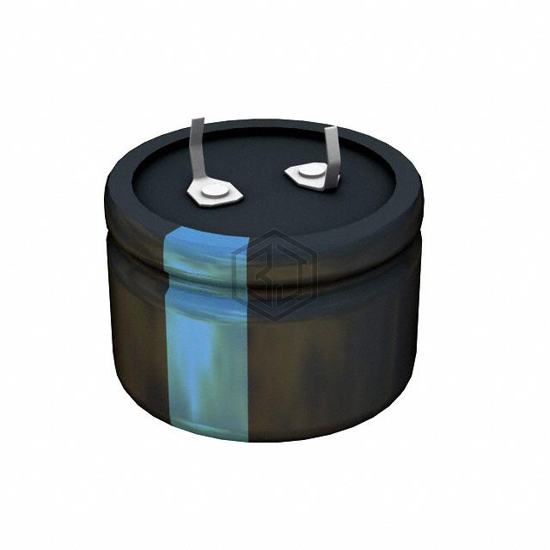

Cornell Dubilier Electronics (CDE)
CAP ALUM 2200UF 20% 63V SNAP
380LX222M063K202 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2200UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 5,170
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 170mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
380LX222M063K202 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL204868222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 63V RADIAL | 98% | View |
| MAL202118222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 63V AXIAL | 88% | View |
| MAL214060222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 74% | View |
| ELXV250ELL222MM20S | United Chemi-Con | CAP ALUM 2200UF 20% 25V RADIAL | 73% | View |
| RXW222M1CBK-1325S | SURGE | CAP ALUM 2200UF 20% 16V RADIAL | 67% | View |
| B41821F4228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 16V RADIAL | 67% | View |
Submit your RFQ for 380LX222M063K202 and get a quote within 24 hours.
